Specifications
|
Item |
Hole |
Length |
Width |
| WT-A |
5/32" |
3/4" |
3/8" |
| WT-B |
1/8" |
1 1/8 " |
1/2" |
| WT-C |
1/8" |
1 1/4" |
1/2" |
| WT-D |
1/8" |
1 1/2" |
1/2" |
| WT-E |
5/32" |
1 1/8 " |
1/2" |
| WT-F |
5/32" |
1 1/4" |
1/2" |
| WT-G |
5/32" |
1 1/2" |
1/2" |
| WT-H |
11/64" |
1 3/16" |
1/2" |
| WT-I |
3/16" |
1 1/8" |
1/2" |
| WT-J |
3/16" |
1 3/4" |
1/2" |
| WT-K |
13/64" |
1 1/8" |
1/2" |
| WT-L |
7/32" |
1 1/8" |
1/2" |
| WT-M |
1/4" |
7/8" |
1/2" |
| WT-N |
1/4" |
1 3/16" |
1/2" |
| WT-O |
1/4" |
7/8" |
1/2" |
| WT-P |
3/16" |
1 1/4" |
1/2 |
| WT-R |
None" |
1 3/4" |
1/2 |
| WT-S |
5/32" |
7/8" |
1/2 |
| WT-T |
1/4" |
1" |
1/2 |
|

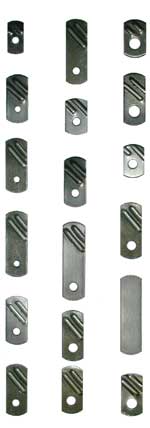

Weld Tabs Weld tabs are welded to flat metal surfaces where a hanging or mounting hole is required. We can maufacture weld tabs in heavier gauges. Minimum order 3,000 pcs. Material: 18 gauge steel (raw) |
